Totalrex
The Rex PF version increases the car parking lift family to allow people on board.
Extremely secure and reliable, the car parking lift Totalrex PF,with control panels placed on top of the platform, guarantee the absolute security and reliability for the person and the car on board.
Description

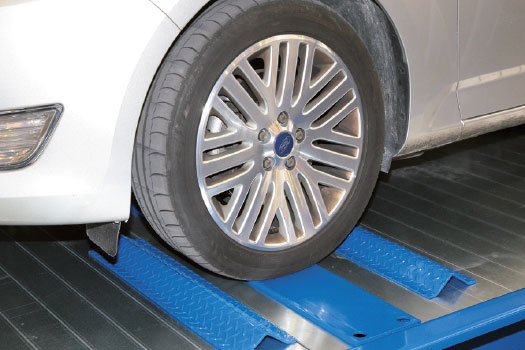

As seen in the photo, the person can operate the lift while seated in the vehicle (for the sake of clarity, the photographs were taken inside a building since it would be impossible to photograph the whole after being inserted in the pit).
One of the main
characteristics of Omer SPA products is that weight is perfectly balanced on the platform, no matter where it is positioned. The system of Omer SPA units, in particular TOTAL REX, makes it possible to lift the platform while keeping it perfectly parallel to the ground, without any torsion or bending at all.
On the short sides of the platform
TOTALREX has two photoelectric barriers that block the vehicle immediately and automatically as soon as they come into contact with the vehicle itself, thus protecting the vehicle from contact with the surrounding wa
This photo shows the photocell
fit inside a galvanized iron structure that protects both the transmission system (and receiver) and the electrical connections.
TOTALREX is one of the few vehicle elevators
on the market that allows a person to remain on-board and is also one of the most reliable car lifts on the market.
The various electrical connections
of the pushbutton control panel to the electrical panel run through special aluminum ducts that prevent deterioration and tampering. The photo shows how carefully the product is manufactured.

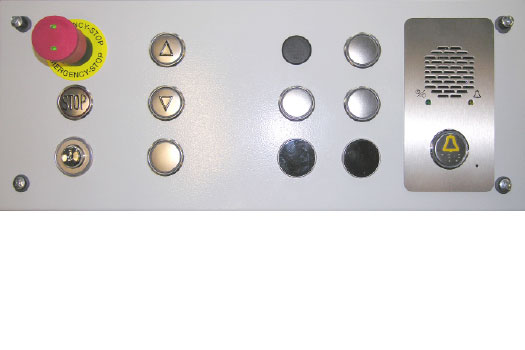

The position of the control panel
is specially designed so that, when the vehicle stops, the driver can easily reach through the window to operate the lift while comfortably seated in the vehicle.
The pushbutton control
panels on the various floors are used to call the lift; these panels also have safety keys to keep out unauthorised users.
The pushbutton panel has class IP 65 protection rating against outside factors.
The pushbutton panel has class IP 65 protection rating against outside factors.

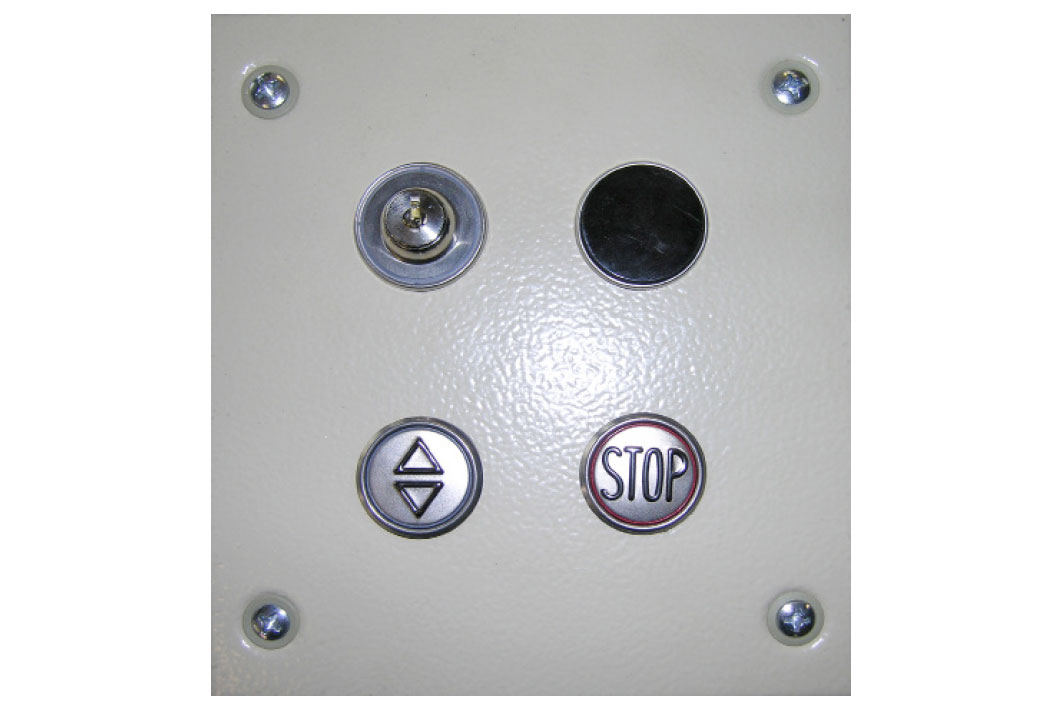

The maintenance panel
allows the operator to move the unit from various positions, thus providing access under special circumstances and in full safety.
Electrical control panel
normally installed on the wall above the hydraulic unit.
The photo shows the telephone receiver used to contact the intercom on the platform.
The photo shows the telephone receiver used to contact the intercom on the platform.
Magnetic sensor
controls opening of the motorized doors.
Connection to the control unit enables or disables automatic opening of the doors.
Connection to the control unit enables or disables automatic opening of the doors.
