HYPERLIFT 80 4C

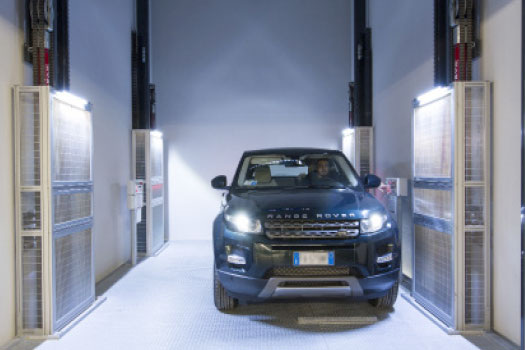

HYPERLIFT is, by definition, the top of the range of platform lifts of O.ME.R. SpA.
With a capacity of 8 tons, (% tons with the roof option), it can rise up, beside of any kind of vehicle, also small trucks, trailers, and transportation vehicles of medium sizes.
It is very useful for industrial application, on request it can be equipped with cabin and doors on board.
Security level of this machine is, definitely, one of the best point of O.ME.R. SpA production.
Description

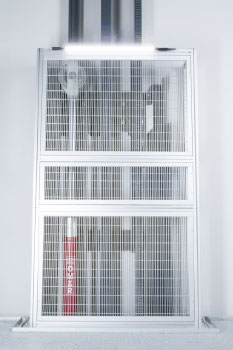

Protection
of the column and mechanical handling has an height of 2,40 mt. to avoid that anybody, which stay onto the platform could, in any case, touch the mechanical handlings of the same. In case it is necessary, protection can be used like support of lighting system (optional).
Every single piston
is equipped by two structural returning chains, which allow to double the length of the piston itself.
In this way we can easily get the double of the length of the piston rod, without compromise the stability of the platform lift.
The Hyperlift can easily get up to 16 mt. travel.
In this way we can easily get the double of the length of the piston rod, without compromise the stability of the platform lift.
The Hyperlift can easily get up to 16 mt. travel.
The pulley structure
is assemble in a way doesn’t allow, in any case, the spillage of the chains from their natural base.
The pins are interlocks and the steel structure, which surround the chains is placed for the security of the same.
The pins are interlocks and the steel structure, which surround the chains is placed for the security of the same.
The platform
is equipped by a stopping wheels system, in order to place the car in the correct position and not interfere with control systems, which allow the functioning of the platform itself.
Furthermore, the stopping wheel itself works like a stop in order to avoid the vehicle moves while the platform is travelling, in case the hand break has been forgot.
Furthermore, the stopping wheel itself works like a stop in order to avoid the vehicle moves while the platform is travelling, in case the hand break has been forgot.
The platform, on the two short sides, is protected by two photocells barriers (one per side), in order to prevent the movement of the same, in case the vehicle has been parked wrongly on top of the platform.
The light beam, which form a real barrier and not just a simple ray, works in a way to avoid any kind of possible damages which could occur by a possible contact with the wall, while travelling.
The light beam, which form a real barrier and not just a simple ray, works in a way to avoid any kind of possible damages which could occur by a possible contact with the wall, while travelling.
The landing push button
boards are equipped with all buttons for functioning and security, such as the stop button, access key and closing doors button. Assuming that the landing push button boards could be installed outside, they have a water level protection IP 54
The platform

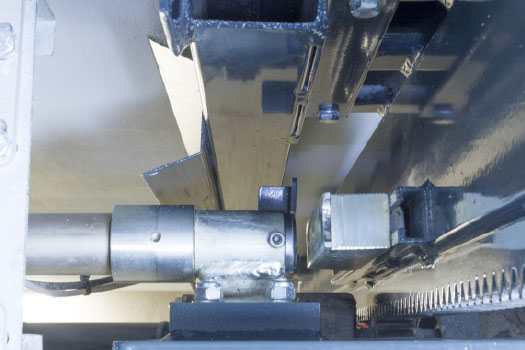

is perfectly balanced from a torsion bars system, placed underneath the platform itself. The bars system, which is running along the columns throughout four tooth rack (one each column), works in a way that, even though the weight on top of the platform is misplaced or misbalanced, the platform keeps moving in a perfect flat way. Furthermore, the torsion bars system works in a way that the four pushing pistons, placed one per column, work all together simultaneously, without decompensation of pressure.
